Unit Converter

A basic and universal unit converter with python backend with Flash API and a React frontend.

Overview

This project is a Universal Unit Converter that marries a lightweight yet powerful Python conversion engine with a modern, responsive React frontend. It supports conversions across nine major categories—Length, Area, Volume, Mass, Time, Velocity, Acceleration, Temperature and Data Storage—providing both the numeric result and a human-readable explanation (multiplication factor or formula). The backend is a Flask API that exposes the conversion logic as REST endpoints, and the frontend is built with Create React App, styled by Tailwind CSS & DaisyUI, offering an intuitive UI with real-time validation, loading states and nicely formatted unit labels (including superscripts for exponents and division symbols).

Tech Stack

Python Conversion Engine

• Language: Python 3.7+
• Core Library: unit_converter.py
• Design:
  • A UnitConverter class with a single _factors registry mapping every unit (and its aliases) to a base-unit factor
  • Conversion methods per category (convert_length, convert_area, … convert_acceleration) that normalize units, apply factor arithmetic, and handle special cases (e.g. area aliases “sq m” → m²)
  • convert_temperature which walks through an intermediate Celsius step to handle Fahrenheit and Kelvin offsets
  • get_conversion_explanation() that returns either a formula (for temperature) or “Multiply by X” / “Divide by Y” for other quantities

Backend Server

• Framework: Flask + flask-cors
• Endpoints:
  • GET /units – Returns JSON of available units per category (sorted alphabetically, except Data Storage sorted by size)
  • POST /convert – Accepts { type, value, fromUnit, toUnit }, invokes the converter, and returns { result, explanation } or an error
• Communication: JSON over HTTP on port 5001

Frontend Client

• Framework: React (Create React App)
• Styling: Tailwind CSS + DaisyUI components
• Components:
  • App.js – Manages state (types, units, input, result, loading/error flags), fetches /units, posts /convert, and renders the form & result card
  • UnitDisplay.js – Parses unit strings like m2, cm3, km/h and injects <sup> tags for exponents, handles division slashes
• UX Features:
  • Animated spinner during initial unit fetch and conversion
  • Inline error alerts
  • Disabled inputs while loading
  • Smooth “fade-in” of the result card

Build & Development Tools

• Python: pip install flask flask-cors
• JavaScript: Node.js, npm
• Frontend: Create React App, PostCSS, Tailwind CSS, DaisyUI
• Testing:
  • Python: unittest suite in test/test_unit_converter.py
  • Frontend: default Jest setup from CRA

Getting Started

1. Clone the repository

git clone https://github.com/your-username/universal-unit-converter.git
cd universal-unit-converter

2. Install and run the Python API

(Optional) create & activate a virtual environment

pip install flask flask-cors
python api.py
# The API will listen on http://localhost:5001

3. Launch the React frontend

cd unit-converter-frontend
npm install
npm start
# Opens http://localhost:3000 in your browser

4. (Optional) Run the Python test suite

python -m unittest discover

Usage

1. Select a Conversion Type Choose from Length, Area, Volume, Mass, Time, Velocity, Acceleration, Temperature or Data.
2. Enter a Value Type any number (integers, decimals, positives or negatives).
3. Choose From/To Units Dropdowns auto-populate based on the selected category; exponents and slashes render correctly.
4. Click “Convert” The app displays the numeric result and a concise explanation:

   • Temperature: displays the formula (e.g. “°F = (°C × 9/5) + 32”)

   • Others: shows “Multiply by X” or “Divide by Y” or “Units are equivalent.”

Architecture & Components

Python Core (unit_converter.py)

• _factors: maps every unit and alias to a base-unit factor (e.g. 'km': 1000.0, 'sq m': 1.0)
• Generic _convert(): lowercases units, validates them, applies factor arithmetic
• Per-category methods: wrappers that call _convert() or implement special logic (convert_area, convert_temperature)
• get_conversion_explanation():

  • For temperature, returns standard formulas

  • For other types, computes result÷input to determine “Multiply by” or “Divide by”

Backend Server (api.py)

• Initializes a single UnitConverter instance
• /units: iterates over converter._factors, sorts keys, capitalizes type names, injects a hard-coded Temperature list
• /convert: parses JSON, maps type to conversion method, catches errors, returns structured JSON

Frontend Client (unit-converter-frontend/)

• App.js

  • useEffect to fetch unit lists on mount

  • State hooks for inputs, result, loading, errors

  • handleConvert() posts JSON to /convert and displays the response

• UnitDisplay.js
  • Parses unit strings with regex, wraps digits in <sup>, reassembles division parts
• Styling & Layout

  • DaisyUI “card” layout, form controls, alerts, spinners

  • Responsive grid for input/result panels

Testing (test/)

• test_unit_converter.py

  • Validates every category’s conversions, edge cases (zero, negative, large/small magnitudes)

  • Verifies get_conversion_explanation() for both formula and factor-based outputs

Challenges

1. Designing a Unified Conversion Registry

Problem: Supporting dozens of units (and their many aliases) across multiple physical quantities without repetitive code. Solution: A single _factors dictionary keyed by category, enriched with programmatic aliases (e.g. area “sq m” → “m2”). _convert() handles all arithmetic uniformly. Why: Minimizes duplication, centralizes validation and error messages. Future: Load factor data from a schema or external JSON to allow user-defined units.

2. Handling Temperature Offsets & Explanations

Problem: Celsius, Fahrenheit and Kelvin don’t share a purely multiplicative relationship; they require additive offsets and different formulas. Solution: Convert any input to Celsius first, then to target; get_conversion_explanation() returns standard formulas (e.g. “°C = (°F − 32) × 5/9”). Why: Keeps temperature logic isolated and expressive. Future: Support additional temperature scales (Rankine, Réaumur) and display worked-out examples.

3. Rendering Complex Unit Labels in React

Problem: Units like “m2”, “cm3” or “km/h” need proper typographic treatment (superscripts, division signs) in a JSX environment. Solution: UnitDisplay.js parses the string with regex, injects ^{for digits, and correctly reassembles parts around “/”. Why: Enhances readability and professionalism of the UI. Future: Extend to handle compound units (e.g. “N·m”, “J/s²”) and locale-specific formatting.}

What I Learned

1. Crafting a single, generic conversion engine that scales across multiple domains.
2. Implementing offset-based conversions (temperature) cleanly alongside factor-based ones.
3. Exposing Python logic via a RESTful Flask API with CORS for seamless frontend integration.
4. Building a React UI with Tailwind CSS & DaisyUI, handling asynchronous fetches, loading spinners, and error states.
5. Writing comprehensive unit tests in Python to guard against edge cases (zero, negatives, extremes).
6. Parsing and rendering superscript exponents and division in JS/JSX with a minimal utility component.

Next Steps

• Add more categories (Energy, Pressure, Data Rate).
• Publish the Python engine as a PyPI package & Docker image for easy reuse.
• Introduce a CLI or Streamlit front-end for quick local conversions.
• Enhance the frontend with mobile-first design and offline caching (PWA).

Improvements I’d Like to Make

• Allow custom unit definitions via a user-editable JSON schema.
• Offer batch conversions (upload CSV of values and units).
• Visualize unit relationships in a graph or tree structure.

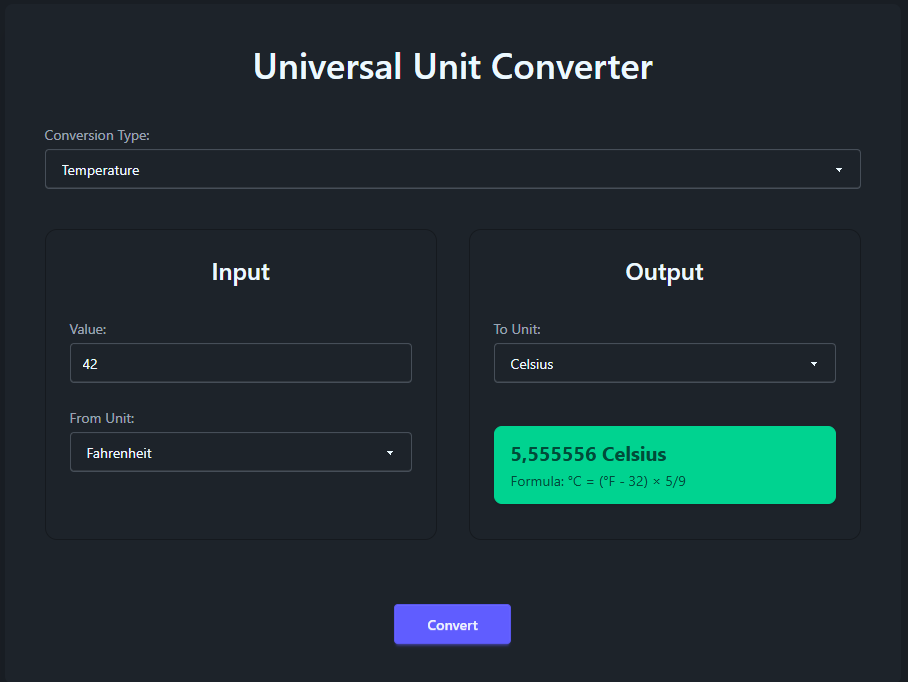

Screenshots
