AI Weather Classification

An implementation of a convolutional neuronal net with pytorch to classify weather conditions from pictures

Overview

This project delivers an end‑to‑end image classification pipeline for detecting 11 distinct weather phenomena (dew, fog/smog, frost, glaze, hail, lightning, rain, rainbow, rime, sandstorm, snow) using a custom convolutional neural network in PyTorch. It provides:

• A training script (src/training/train_model.py) implementing a 3‑layer ConvNet with configurable image resizing and logging.
• An Optuna‑powered hyperparameter optimization module (src/training/optimize_hyperparameters.py) that tunes learning rate, weight decay, and more via small/large modes and persists trials in db.sqlite3.
• An evaluation tool (src/evaluation/evaluation.py) that computes weighted F1, precision, recall, prints a classification report, and saves a confusion matrix plot.
• A prediction CLI (src/prediction/predict.py) to batch‑infer on new images using the trained model.
• Utility components under src/utils/ for data loading/splitting (train/val/test), class‑distribution analysis, and model architecture visualization (via torchview).
• An experiments/ folder capturing loss curves, confusion matrices, and other artifacts for reproducibility.

Tech Stack

• Language & Environment: Python 3.9.13 (Conda), PyTorch 2.1.2 & Torchvision 0.16.2
• Data & Transforms: torchvision.datasets.ImageFolder, custom WeatherDataset, torch.utils.data.DataLoader
• Hyperparameter Tuning: Optuna 3.6.1 with SQLite backend & optuna-dashboard
• Visualization: Matplotlib for loss curves & pie charts, torchview for model graphs
• Evaluation: scikit‑learn (classification_report, confusion_matrix), tabulate for CLI tables
• Logging & CLI: structlog, argparse, tqdm for progress bars
• Dev Tools: Git, Conda (via environment.yml), requierements.txt (pip lockfile)

Getting Started

1. Clone the repo: git clone https://github.com/Nicolas2912/AI-Weather-Classification.git cd AI-Weather-Classification
2. Create & activate a Conda environment: conda create -n weather-classification python=3.9.13 conda activate weather-classification
3. Install dependencies (note the repository’s pip lockfile is requierements.txt): pip install -r requierements.txt

Usage

Training

Train a new model (saves to models/weather-model.pth by default):

python src/training/train_model.py \
    --data dataset \
    --device cuda \
    --epochs 28 \
    --model_path models/my-weather-model.pth \
    --verbose True

Hyperparameter Optimization

Run Optuna study (small or large mode):

python src/training/optimize_hyperparameters.py \
    --data dataset \
    --n_trials 50 \
    --epochs 10 \
    --device cuda \
    --mode small \
    --study_name my-weather-study

View live dashboard:

optuna-dashboard sqlite:///db.sqlite3

Evaluation

Evaluate a trained model on the test split and save confusion matrix:

python src/evaluation/evaluation.py \
    --data dataset \
    --model models/my-weather-model.pth \
    --device cuda

Prediction

Batch‑predict on a folder of images:

python src/prediction/predict.py \
    --model models/my-weather-model.pth \
    --images test_images/test_image_class \
    --dataset dataset \
    --device cuda

Usage Highlights

• WeatherClassifier (train_model.py):

  • Convolutional blocks (3 layers): channels [3→64→512→1024], kernel_size=3, stride=2, padding=1

  • LeakyReLU activations + MaxPool2d, dynamic feature-size computation

  • Classifier head: dropout 0.3573 → linear (num_features→1024) → LeakyReLU → dropout → linear (→num_classes)

  • Training loop with CrossEntropyLoss + Adam, history of loss & accuracy plotted

• Hyperparameter Optimization:

  • Small mode: tunes lr (1e-6–1e-1) & weight_decay (1e-10–1e-2), minimizes validation loss

  • Large mode: tunes lr, weight_decay, batch_size (2–32), activation [ReLU/SiLU/LeakyReLU], dropout (0.1–0.5), epochs (5–50), maximizes test accuracy

• DataLoader (utils/data_loader.py):

  • Splits into train/val/test (70/15/15) with seed reproducibility

  • custom_image_loader for single-image prediction

  • Class distribution analysis + pie-chart plotting

• Evaluation (evaluation.py):

  • Computes weighted F1, precision, recall via scikit-learn

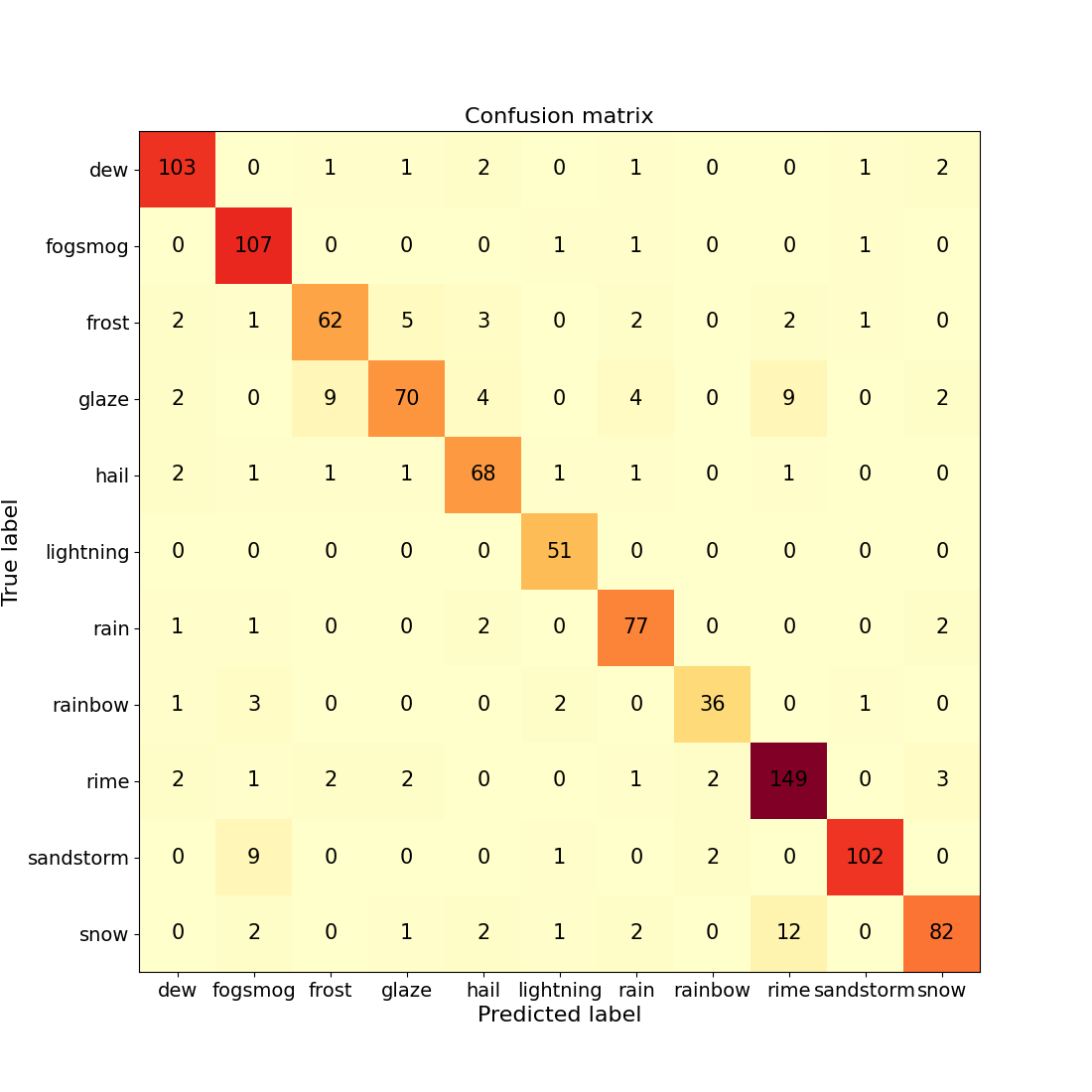

  • Plots & saves confusion matrix with class labels

• Prediction (predict.py):

  • Batch predicts on any folder of images, outputs a table of filename → predicted class

Architecture & Components

Core Modules

• src/utils/data_loader.py: WeatherDataset wraps ImageFolder, applies Resize/ToTensor, and provides train/val/test splits plus class‑distribution analysis.
• src/training/train_model.py: Defines WeatherClassifier (3 conv layers → fully‑connected head), training loop with loss/accuracy tracking, and model‑size reporting.
• src/training/optimize_hyperparameters.py: Launches Optuna trials for LR, weight decay, batch sizes, etc.
• src/evaluation/evaluation.py: Loads a saved model, computes F1/precision/recall, prints tabulated report, and plots + saves confusion matrix.
• src/prediction/predict.py: Inference pipeline over arbitrary image folders, outputs a CLI table of predicted labels.

Supporting Artifacts

• notebooks/data_analysis.ipynb: Exploratory analysis of class distributions and sample images.
• src/utils/plot_model.py: Generates a visual graph of the CNN architecture via torchview.

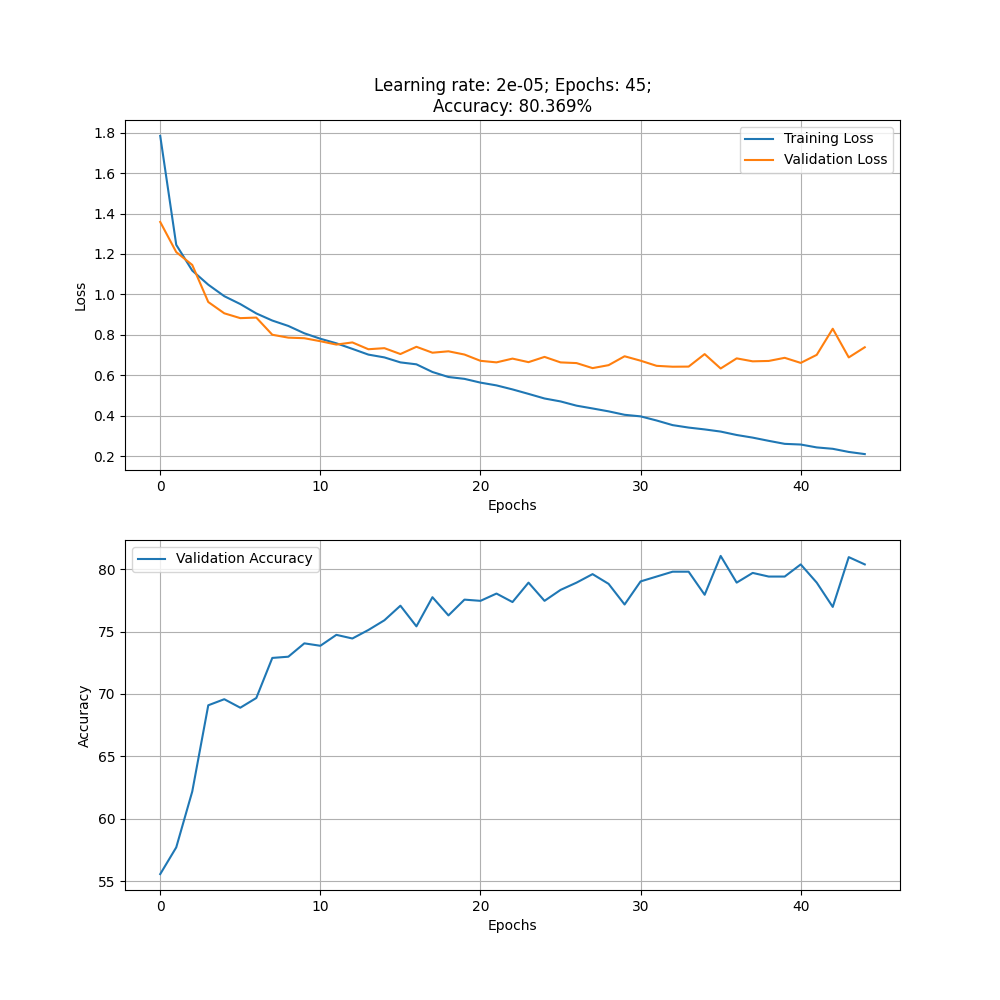

• experiments/: Stores training loss curves (.png), confusion matrices, and Optuna trial logs.
• test_images/: Sample images for quick sanity checks in prediction.

Tests

There is no formal unit‑test suite yet; instead, a small set of labeled images under test_images/test_image_class can be used to verify end‑to‑end inference correctness.

Challenges

1. Building a CNN from Scratch in PyTorch

Implemented Solution

• Designed the WeatherClassifier class: modular _initialize_layers & _setup_classifier methods
• Dynamically computed the flatten size via a dummy input tensor
• Managed model-to-device transfers and verbosity flags for detailed tabular logging

Why This Approach

• Clarity & Debuggability: Layer init and classifier setup are decoupled, making it easier to inspect intermediate shapes
• Flexibility: Channel counts, dropout rates and activation functions are all easy to tweak

Future Improvements

• Incorporate residual or depthwise-separable blocks for efficiency
• Leverage transfer-learning (e.g. ResNet, EfficientNet) for faster convergence on limited data
• Add mixed-precision training (torch.cuda.amp) to exploit RTX 4070 Ti fully

2. Hyperparameter Optimization under Resource Constraints

Implemented Solution

• Employed Optuna to tune learning rates, weight decay, batch sizes and architectural hyperparameters
• Separated “small” (quick lr/wd sweep) and “large” (full search) modes to manage GPU time
• Persisted trials in db.sqlite3 and enabled interactive inspection via optuna-dashboard

Why This Approach

• Efficiency: Focused searches reduce wasted GPU cycles
• Reproducibility: SQLite storage lets you resume or share studies
• Transparency: CLI prints best parameters in a neat table

Future Improvements

• Integrate Optuna pruning to preemptively halt poor trials
• Implement multi-objective studies (accuracy vs training speed)
• Auto-scale batch sizes based on real-time GPU memory profiling

What I Learned

• Translating a mathematical CNN design into efficient PyTorch modules and training loops.
• Prerocessing and data analysis of images.
• Integrating Optuna for scalable hyperparameter searches and persisting studies in SQLite.
• Crafting detailed evaluation scripts that output both CLI tables and publication‑quality plots.

Improvements I’d Like to Make

• Add a formal test suite (unit & integration) with CI (GitHub Actions) for automated validation. generalization.
• Using a more advanced model architecture like ResNet or AlexNet.
• Experiment with transfer learning (ResNet/MobileNet backbones) to boost accuracy and speed.
• Provide a Streamlit or Flask web UI for interactive image upload & prediction.

Screenshots
